Stage plot/I/O/Backline/Manifest/Setlists/Day sheets

Your stage plot,
done in minutes

The browser-based production office for live music. Draw the stage once and the I/O list, backline, and customs manifest follow it. Add per-artist setlists and day sheets, share one live link, and export real documents. No installs.

Start 14-day free trial Try it free, no signup See features

14-day free trial. No credit card required.

StageplotVision / The Ryman Residency Rev 12 · FOH copy
DOWNSTAGE / AUDIENCEUPSTAGE32' × 24'STAGE RIGHTSTAGE LEFTDrum Kit (5pc)Bass Amp 4x10KeysCombo AmpCombo AmpVocal (Straight)Vocal (Tall Boom)Vocal (Straight)Wedge MonitorWedge MonitorWedge MonitorWedge MonitorSidefillSidefill
35+ stage assets
4 linked surfaces
10+ export documents
US/EU ft/m · 120/240V
0 installs
01
Feature Index

Everything from the advance to load-out

Build the plot in the green room, clear the border with the manifest, hand FOH the I/O, and tape the setlist to the deck. One plot carries all of it.

01

Visual Stage Plot Editor

A scaled, top-down canvas with 35+ assets across 12 categories. Grid and object snap, free rotation, rubber-band multi-select, and 60-step undo/redo.

02

Integrated I/O Channel List

Channels appear the moment you place gear. Stereo/mono renumbering, +48V phantom, row locking, drag-to-reorder, and catalog-backed mic picks.

03

Monitor and IEM Linking

Two clicks link wedges, sidefills, and IEM packs to shared output rows, with stereo pairing and unlink from the context menu.

04

Signal Routing

Subsnakes in 12, 8, or 6 channels with A-3 style assignments, a patch matrix, visible open holes, free SND sends, and a routable DSP rack.

05

Backline List

Gear rows suggested straight from the canvas, grouped by section with make, model, size, and quantity. Cloud presets on Pro.

06

Custom Drum Kits

Define a kit piece by piece, from kick to cymbals, each with its own mic or DI and stand. The I/O list and backline follow the build.

07

Customs Manifest

ATA Carnet General List and CBP 4457 documents seeded from the plot you already built, with catalog values and weights prefilled.

08

Setlists

A per-artist song library, sectioned sets with drag reorder, big-type stage printing, and import from .docx or .pdf.

09

Day Sheets

A per-show run sheet filed under the artist: event, date, and city, a roles contacts block, and time-stamped schedule rows. Print, export, or share a live link.

10

Always-Live Share Links

One URL that always shows the latest revision. Read-only, QR included, revocable any time. No re-sending PDFs.

11

Plot Collaboration

Co-edit a plot with another Pro user, with a presence indicator and a newer-version guard before you overwrite a save.

12

Free Co-Editing

Invite a music director to edit an artist's setlists and day sheets for free. They just need a free account, and they see your plots read-only.

13

Multi-Format Export

Ten plus documents from one plot: stage plot, I/O, backline, manifest, setlist, and day sheet PDFs, CSVs, and print pages. Contacts auto-appear on each.

14

US/EU, Every Device

Feet or meters, 120V or 240V, US Letter or A4, desktop to phone. Works in any browser with offline auto-save. Nothing to install.

02

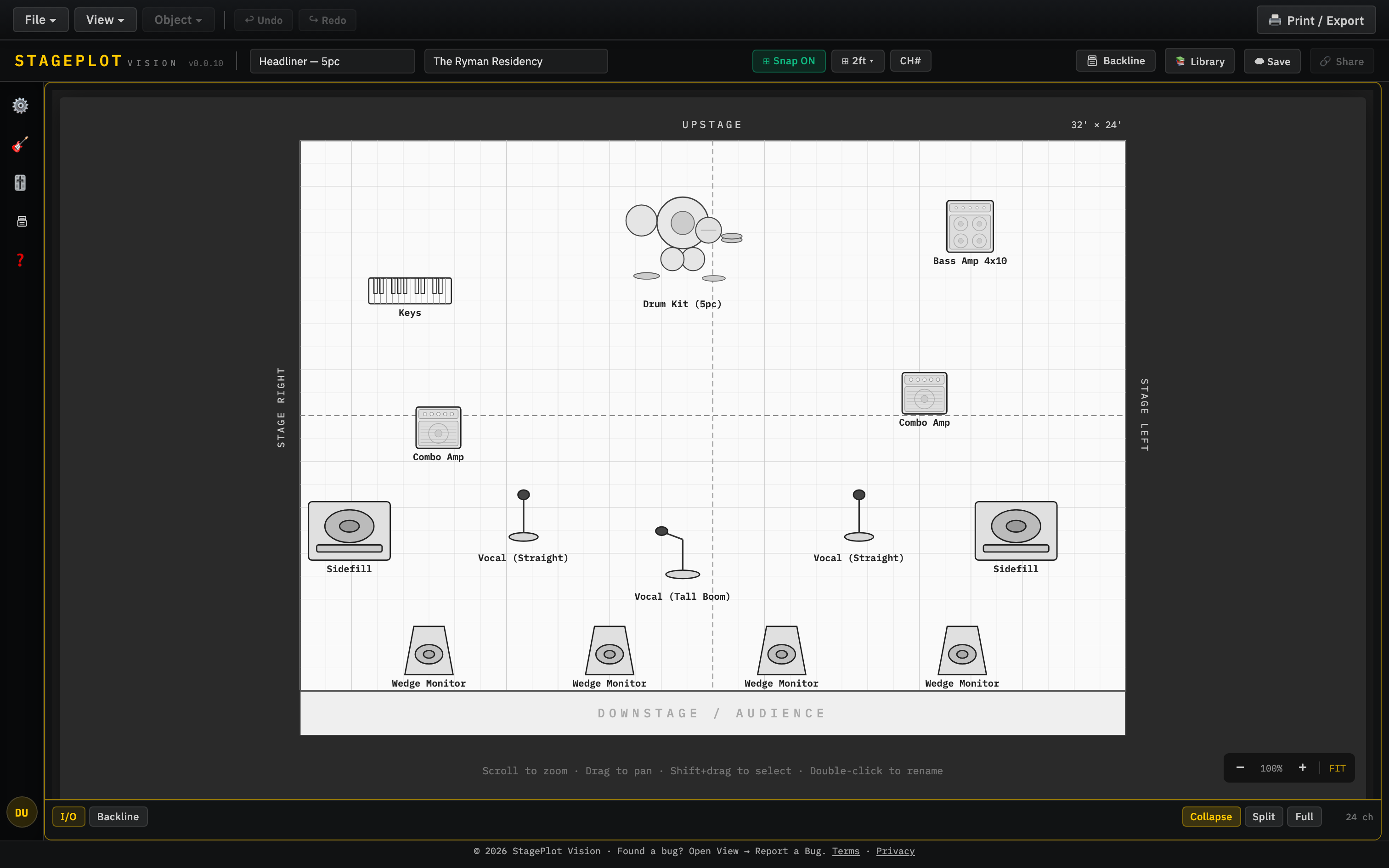

Stage Plot Editor

Your full rig, laid out to scale

Build a top-down stage floor plan with real dimensions. Set stage width and depth in feet or meters, place elements anywhere with optional grid snap, and rotate freely to any angle.

  • +35+ instruments across 12 categories including drums, keys, strings, risers, and video (LED wall)
  • +Stage dimensions from 10 to 200 ft (or meters), with adjustable grid snap
  • +Zoom, pan, rubber-band multi-select, and 60-step undo/redo
  • +Riser and stairs dimension editors with US and EU standard panel sizes built in
  • +Measurement rulers drawn directly on the canvas to annotate distances

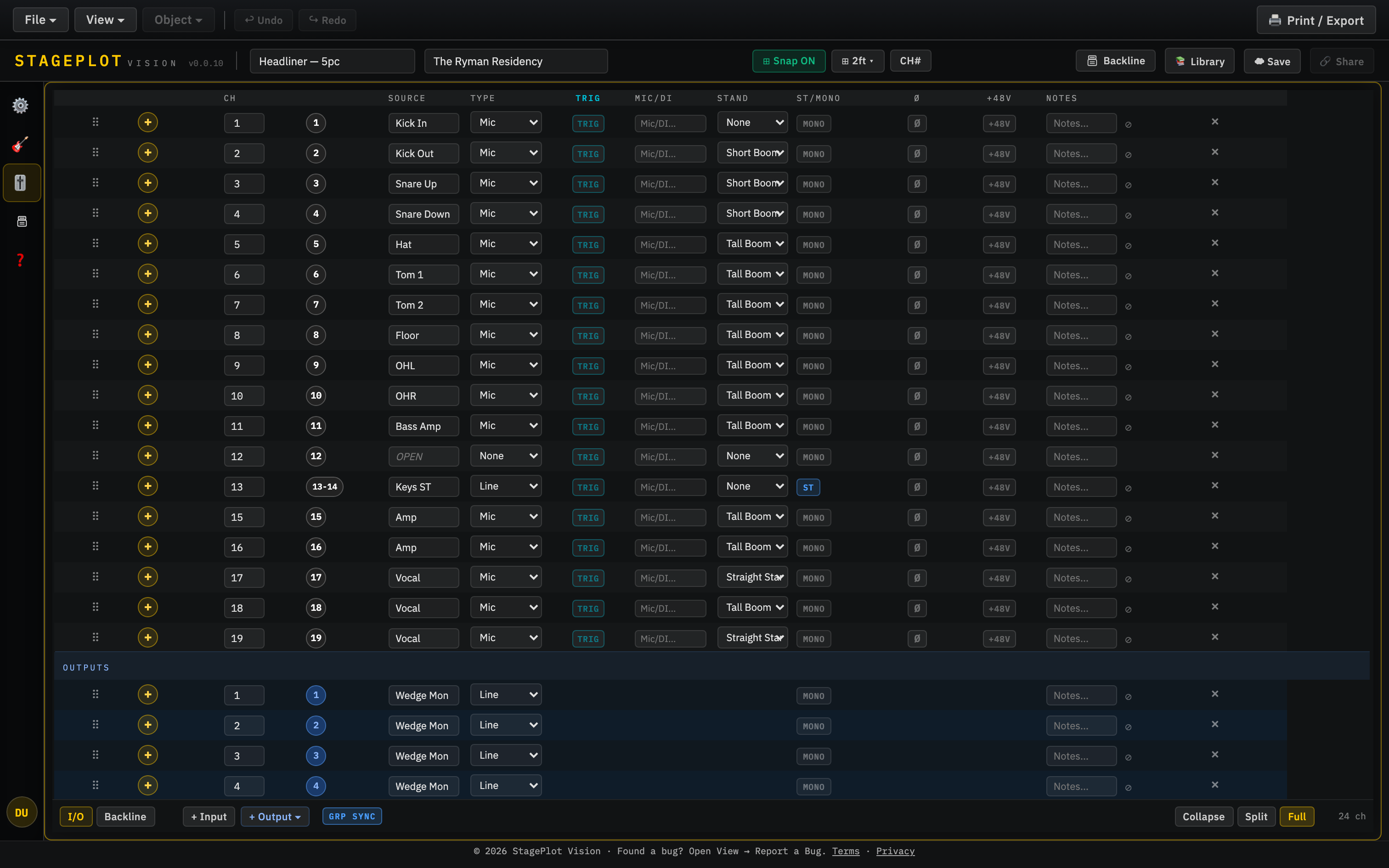

The Ryman Residency / Input list Live rows · tap +48V / ST
CHSourceTypeMic/DIStand
+1Kick InMicBeta 91ANoneMONO +48V
+2Kick OutMicBeta 52AShort BoomMONO +48V
+3Snare UpMicSM57Short BoomMONO +48V
+4Snare DownMicSM57Short BoomMONO +48V
+5HatMicSM81Tall BoomMONO +48V
+6Tom 1MicMD421ClampMONO +48V
+7Tom 2MicMD421ClampMONO +48V
+8FloorMicMD421Tall BoomMONO +48V
+9OHLMicKM184Tall BoomMONO +48V
+10OHRMicKM184Tall BoomMONO +48V
+11Bass AmpMicRE20Short BoomMONO +48V
+12OPENNone
+13-14Keys STLineRadial J48NoneST +48V
+15AmpMicSM57Tall BoomMONO +48V
+16AmpMice906Tall BoomMONO +48V
+17VocalMicSM58Straight StandMONO +48V
+18VocalMicSM58Tall BoomMONO +48V
+19VocalMicBeta 58AStraight StandMONO +48V
Outputs
+M1Wedge MonLineMONO
+M2Wedge MonLineMONO
+M3Wedge MonLineMONO
+M4Wedge MonLineMONO
+M5SidefillLineST
03
I/O and Routing

From input list to patch, without leaving the plot

Every instrument you drop on the canvas adds its channels automatically. Then route them: subsnakes, sends, monitors, and DSP, all in the same view.

  • +Channels auto-populate with stereo/mono renumbering, +48V phantom, and row locking
  • +Mic and DI picks from a curated catalog with structured make and model. Free text always works
  • +Subsnakes in 12, 8, or 6 channels: A-3 style assignments, a patch matrix, and open holes you can see
  • +Free SND sends on their own number sequence for signals that live only on the snake
  • +DSP rack with in/out banks patchable from any source on the plot
  • +Two-click monitor linking for wedges, sidefills, and IEMs
04
Backline

Your gear list, not just your diagram

Place an amp or drum kit on the canvas and StageplotVision suggests a backline row automatically. Fill in make and model and the gear list writes itself. No separate spreadsheet.

  • +Rows suggested from canvas elements, appended instantly and de-duped per element
  • +Item, make, model, quantity, size, and per-row notes, grouped by section: Drums, Bass, Guitars, Keys, and more
  • +Drum kits expand into Shells, Hardware, and Cymbals sub-groups
  • +Custom kit builder maps every piece to its own mic, DI, and stand
  • +Import an existing gear list with a copy-paste AI prompt flow
  • +Save as a cloud preset and load into any future plot (Pro)
  • +Export as a standalone Backline PDF or append it to the main stage plot export
05
Customs Manifest

Border paperwork, from the plot you already built

Crossing into Canada or Mexico means handing a broker a gear manifest. Stop rebuilding it in a spreadsheet: seed it from your backline, I/O list, and canvas, then export the documents the border actually expects.

  • +ATA Carnet General List export with item numbers, pieces, weights, values, and origin codes
  • +CBP Form 4457 attachment for US re-entry registration, PDF or CSV
  • +Serials print the Carnet way: S/N when you have one, NSN when you do not
  • +Catalog street values and weights prefill common mics, DIs, consoles, and stageboxes
  • +Enter weights in kg or lb; exports convert to the metric line totals the form requires
  • +Rows seeded from I/O stay live-linked: swap a mic and the row follows, delete a channel and it flags stale instead of vanishing
06
Setlists

Every night's setlist, filed under the artist

A song library per artist, setlists built from it, and a print that reads from six feet away. The setlist finally lives with the rest of the show, not in a group chat.

  • +Define a song once in the artist's library, pick it into any set with a search combobox
  • +Sections for Set 1, Set 2, and Encore with drag reorder and per-song keys
  • +Print a big-type stage copy or a full sheet, or export PDF
  • +Import an existing setlist from a .docx or .pdf file
  • +Invite a music director to edit that artist's setlists and day sheets for free, with a read-only view of your plots
  • +Read-only phone view for everyone side of stage
07
Day Sheets

The whole show day on one page

Load-in to load-out, filed under the artist right next to the setlist. Contacts, schedule, and venue details on one sheet the whole crew can read from a phone.

  • +Event header with event name, show date, and city, state, and country
  • +Contacts block with role chips for TM, PM, Production, Hospitality, Transpo, and Venue PoC, each with name, phone, and email
  • +Time, item, and notes schedule rows with reusable labels that recall your common calls
  • +Import an existing day sheet with a copy-paste prompt flow
  • +Print for free, or export a PDF on Pro, with toggles for notes, contacts, and location
  • +Share a read-only live link that updates as you edit, plus a phone view side of stage
08
Sharing and Collaboration

One link that is never out of date

Share a live link to your plot instead of emailing a PDF that goes stale the moment you change a channel. And when one set of hands is not enough, bring in a second editor.

  • +One shareable link per plot, updated automatically as you edit and save
  • +Read-only view: recipients see the stage plot and I/O list, never your editor
  • +Built-in QR code to tape to the console or drop into your show paperwork
  • +Revoke access any time; the link goes dark instantly
  • +Invite another Pro user by email to co-edit a plot; it appears under their Shared with me
  • +Free co-editing for setlists and day sheets: invite a collaborator to one artist and they only need a free account
  • +Presence indicator shows who is in the file, and a newer-version notice guards against overwriting a save
Pricing

50% off your first year

$6/month for 12 months, then $12/month. 14-day free trial, no credit card required.

Monthly Annual Save 20%
Limited time offer
Pro
$6 / month
$6/month for your first 12 months, then $12/month. 14-day free trial, no credit card required.
  • 25 cloud plots
  • PDF export (stage plot, I/O, and Backline)
  • CSV channel list export
  • Cloud save and sync
  • Backline list with cloud presets
  • Up to 3 devices
  • Element notes
  • Priority support
Start 14-day free trial Try the editor, no signup
FAQ

Common questions

Do I need an account to use StageplotVision?
No. Sign up and your 14-day free trial starts immediately, no credit card required. You get full access to every feature during the trial. After 14 days, your subscription begins at $12/month or $115/year.
What can I export?
Pro subscribers can export the combined stage plot and I/O PDF, an I/O-only PDF in portrait or landscape, a standalone Backline PDF, ATA Carnet General List and CBP 4457 manifest documents as PDF or CSV, setlist PDFs in stage-copy or full-sheet layouts, a print-ready HTML page, and a CSV channel list. .spv project files can be saved and loaded on any plan.
How does the Backline list work?
Place instruments and amps on the canvas and StageplotVision appends suggested Backline rows automatically, de-duplicated per element. Edit item, make, model, size, quantity, and notes inline. Drum kits expand into Shells, Hardware, and Cymbals sub-groups, or define a custom kit piece by piece with its own mics, DIs, and stands. Pro users can save the list as a cloud preset and import an existing gear list with a copy-paste AI prompt flow.
What is the customs Manifest module?
A customs gear manifest built from the plot you already have. Seed rows from your backline, I/O list, and canvas, then add serials, weights, values, and countries of origin. Catalog street values and weights prefill common mics, DIs, and consoles. Export an ATA Carnet General List or a CBP Form 4457 attachment, each as PDF or CSV. Rows seeded from the I/O list stay in sync when you swap a mic.
How do setlists work?
Each artist gets a reusable song library and any number of setlists. Build sets with sections like Set 1 and Encore, drag songs into order, and pick keys from a combobox. Print a big-type stage copy or a full sheet, export a PDF, or import an existing setlist from a .docx or .pdf file. You can invite a music director to edit that artist's setlists and day sheets for free, with a read-only view of the artist's plots.
What is a day sheet?
A per-show day sheet filed under the artist: event name, date, and city up top, a contacts block with roles like TM, PM, Production, and Hospitality, and a schedule of time, item, and notes rows. Fill it in by hand or import an existing sheet with a copy-paste prompt flow. Print or export a clean PDF, and share a read-only live link that updates as you edit.
Can my team edit setlists and day sheets for free?
Yes. Co-editing setlists and day sheets is free for the people you invite. As a Pro owner, invite a collaborator by email and scope them to one artist. They only need a free StagePlot Vision account to accept. Invited editors can edit every setlist and day sheet for that artist and view the artist's plots read-only, never your plot editor. Revoke access any time.
Can someone edit a plot with me?
Yes. A plot owner on Pro can invite another Pro user by email to co-edit a plot. It appears under Shared with me, a presence indicator shows who is currently editing, and a newer-version notice warns before you overwrite someone else's save. The owner can revoke access at any time.
Does it work offline?
Yes. After the app loads, local editing, browser auto-save, and .spv file save/load all work without a network connection. Cloud save and sync require network access.
Can I use it on mobile or tablet?
Yes. StageplotVision has touch-optimized layouts for mobile and tablet with pinch-to-zoom, a floating instrument picker, a bottom-sheet I/O panel, and long-press context menus. Setlists get a read-only phone view. Desktop gives the most room for complex plots.
Does it support feet and meters?
Yes. Toggle between US (feet, 120V) and EU (meters, 240V) at any time. Stage dimensions, grid sizes, riser measurements, and power outlet icons all update automatically.
Can I cancel my Pro subscription?
Yes, any time. In the app, open your account menu and choose Manage Billing, which opens the secure Stripe portal where you can update your card, switch monthly/annual, or cancel. Your cloud plots stay accessible, and access continues until the end of the paid period before reverting to Free.
Is there a free trial, and when am I charged?
Pro starts with a 14-day free trial. You are not charged during the trial, and you can cancel any time before it ends to avoid being billed at all. After the trial, your plan renews automatically until you cancel.
What is your refund policy?
We don't offer refunds. The 14-day free trial gives you full access to every Pro feature before you're ever charged. No credit card is required to start. After the trial you can cancel any time and keep access through the end of your paid period.
